XL-205F – Regular Battery
XL-205F
Specification (Typical characteristics of storage at 20℃ for one year)
| Model | ANSI / IEC | D / ER32L615 |
|---|---|---|
| Nominal Capacity | at 5mA, 20℃, to 2.0V | 19.0Ah |
| Nominal Voltage | 3.6V | |
| Max | Cont. Current Pulse Current |
230mA 400mA |
| Operating Temperature | -55~+85℃ | |
| Weight | 98g |
Available terminal type
STD
T1

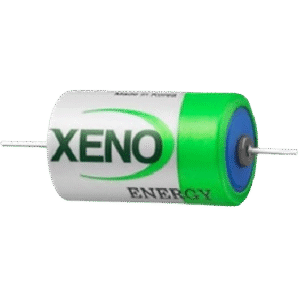

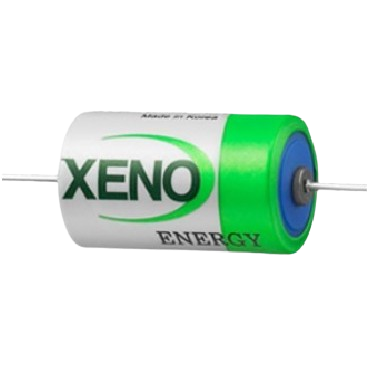

AX

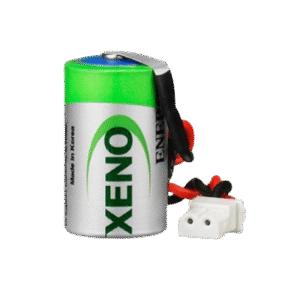

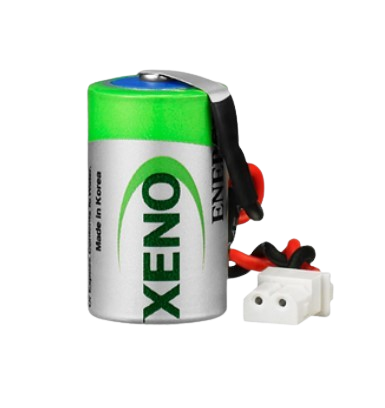

CW
